Comparison

This guide explains how to compare benchmark results using masbench’s interactive HTML comparison reports to analyze the performance differences between different algorithm implementations or configurations.

Overview

The masbench comparison feature allows you to:

  • Compare two benchmark results side by side

  • Generate interactive HTML reports with charts and tables

  • Visualize performance differences with color-coded metrics

  • Sort and filter comparison data

  • Export individual charts as PNG images

Basic Comparison

To compare two benchmark results, use the masbench compare command:

masbench compare benchmark1-name benchmark2-name

For example, to compare an A* implementation against a BFS implementation:

masbench compare astar-v1 bfs-v1

Important

Both benchmark results must exist in your benchmark folder. If either benchmark is not found, masbench will display an error message.

Understanding the Comparison

The comparison is benchmark1-centric, meaning all metrics show how benchmark1 performed relative to benchmark2:

  • Green indicates benchmark1 performed better

  • Red indicates benchmark1 performed worse

  • Gray indicates no difference

To reverse the comparison perspective, simply swap the benchmark order:

masbench compare benchmark2-name benchmark1-name

Prerequisites

Before running comparisons, ensure you have:

  1. At least two completed benchmark runs

  2. Valid CSV result files for both benchmarks

  3. The benchmark names match the folder names in your benchmark directory

Generated Output

When you run a comparison, masbench creates a new folder with an interactive HTML report:

benchmark-results/
└── comparisons/
    └── benchmark1vsbenchmark2/
        └── benchmark1vsbenchmark2_report.html

Opening the Report

Simply open the HTML file in your web browser:

# Linux
xdg-open benchmark-results/comparisons/benchmark1vsbenchmark2/benchmark1vsbenchmark2_report.html

# macOS
open benchmark-results/comparisons/benchmark1vsbenchmark2/benchmark1vsbenchmark2_report.html

# Windows
start benchmark-results/comparisons/benchmark1vsbenchmark2/benchmark1vsbenchmark2_report.html

Report Features

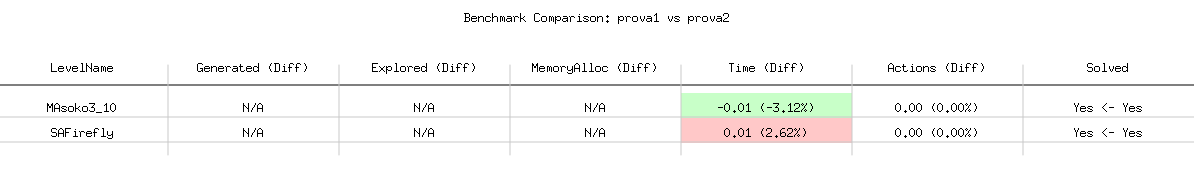

Interactive Comparison Table

The main comparison table shows all metrics for each level:

  • Level Name: The benchmark level identifier

  • Generated: Number of states generated (lower is better)

  • Explored: Number of states explored (lower is better)

  • Memory: Memory allocated in MB (lower is better)

  • Time: Execution time in seconds (lower is better)

  • Actions: Number of actions in solution (lower is better)

  • Solved: Whether the level was solved

Each metric displays: - Current values: value1 vs value2 - Difference: Shows how much better/worse benchmark1 is - Color coding: Green (better), Red (worse), Gray (same)

Table Features:

  • Search: Filter levels by name using the search box

  • Filter: Show only improvements or regressions

  • Sort: Click column headers to sort by any metric

  • Responsive: Automatically adapts to your screen size

Interactive Charts

Charts are organized in tabs for each metric:

  • Generated States Comparison

  • Explored States Comparison

  • Memory Allocation Comparison

  • Time Comparison

  • Actions Comparison

Chart Features:

  • Interactive tooltips showing exact values

  • Zoom and pan capabilities

  • Export individual charts as PNG images

  • Side-by-side bar comparison

  • Responsive sizing

Interpreting Results

Understanding Metrics

All metrics use “lower is better” logic:

  • Generated/Explored: Fewer states means more efficient search

  • Memory: Lower memory usage means better resource efficiency

  • Time: Faster execution is better

  • Actions: Fewer actions means shorter solution path

  • Solved: “Yes” is better than “No”

Reading Differences

Differences show how much benchmark1 differs from benchmark2:

100 vs 120
-20 (-16.7%)

This means: - benchmark1 value: 100 - benchmark2 value: 120 - benchmark1 is 20 units lower (better) - This is a 16.7% improvement

Example Workflow

  1. Run two benchmarks:

    masbench benchmark --name astar-optimized
masbench benchmark --name astar-baseline

  2. Compare them:

    masbench compare astar-optimized astar-baseline

  3. Open the generated HTML report in your browser

  4. If you want to see the opposite perspective:

    masbench compare astar-baseline astar-optimized
